Rigorous Pool Safety Codes and BOCA Compliance Standards
Eliminate regulatory uncertainty and protect what matters most. Orient Juko Metal Art engineers every aluminum pool barrier to strictly satisfy North American BOCA, ICC, and IRC child safety mandates.
Statutory Barrier Height
Standardized 48-inch and 54-inch panel elevations prevent unattended toddlers and young children from scaling the perimeter.
Anti-Entrapment Pickets
Strict maximum 3-13/16" clear spacing between vertical pickets blocks 4-inch sphere passage to prevent head and body entrapment.
Bottom Ground Clearance
Tight clearance of 2 inches or less over concrete deck or solid turf blocks crawling hazards and pet escape routes.
Outward-Swinging Gates
Integrated self-closing hinges and magnetic latches positioned at code-mandated 54-inch operating heights ensure fail-safe closure.

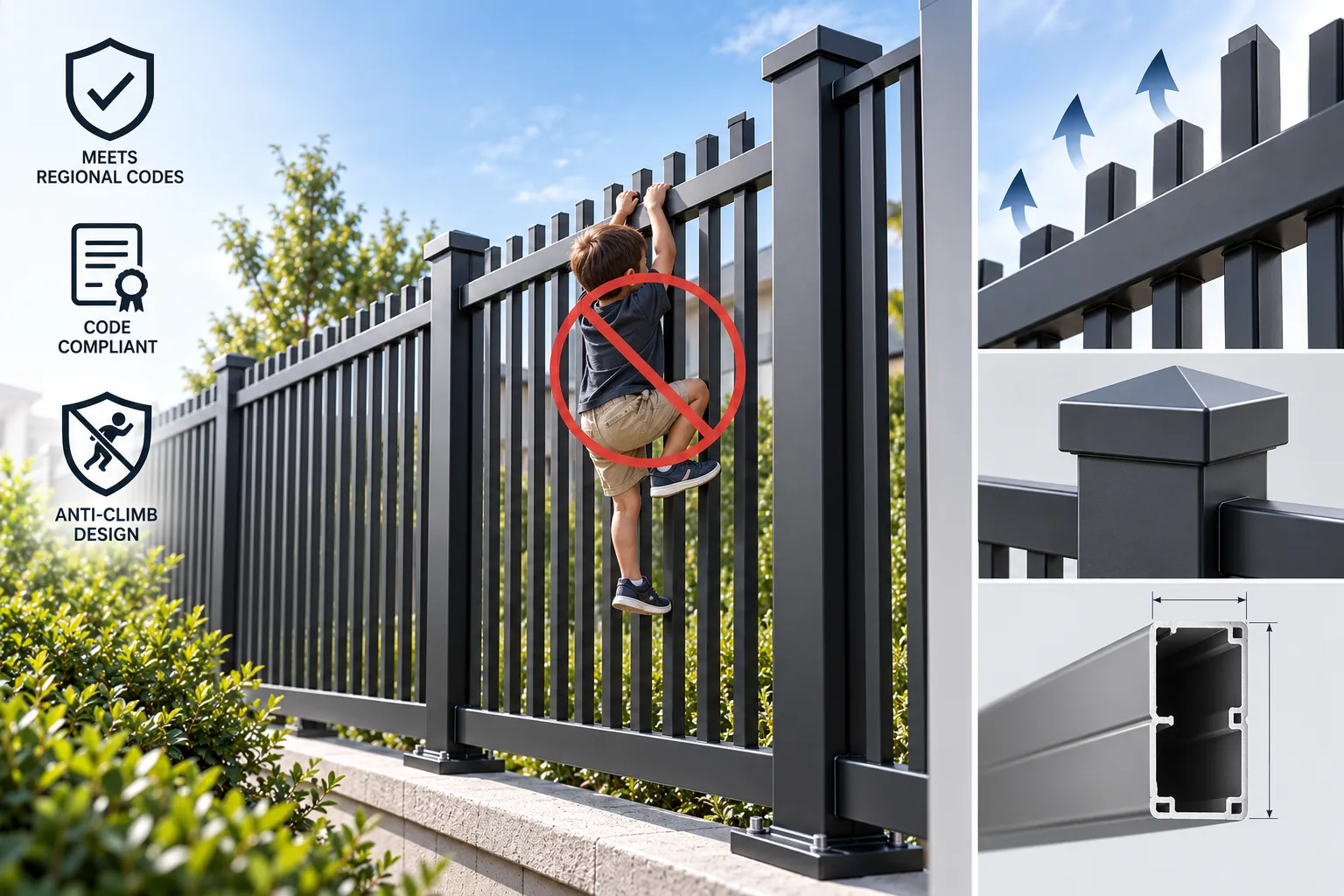

Technical Code Compliance & Anti-Climb Engineering
Orient Juko Metal Art operates automated CNC punching lines that machine vertical picket intervals under strict millimeter tolerances. By adhering directly to North American BOCA pool codes and Australian AS1926.1 barrier standards, our pre-fabricated panels guarantee smooth first-time building inspection sign-offs for general contractors and private property owners alike.
Under International Residential Code (IRC) Section R326 and BOCA guidelines, horizontal rail orientation is strictly regulated. When horizontal framing rails are spaced less than 45 inches apart, our architectural profile designs place the rails exclusively on the interior pool-facing side. We also offer casement windows that complement these secure perimeter designs. Coupled with 45-degree beveled top rail geometry, the fence completely eliminates toeholds and footholds on the exterior approach.
For commercial hospitality, HOA clubhouses, and municipal aquatic facilities, our heavy-duty commercial pool fencing seamlessly incorporates ADA-compliant self-latching hardware, emergency egress panic bars, and reinforced structural posts to withstand high-traffic demands while upholding uncompromising life-safety standards, much like our durable sliding windows.
Core Pool Fence Design Styles & Structural Profiles
Precision-engineered 6063-T6 aluminum configurations meeting strict BOCA safety standards and modern landscape aesthetics.

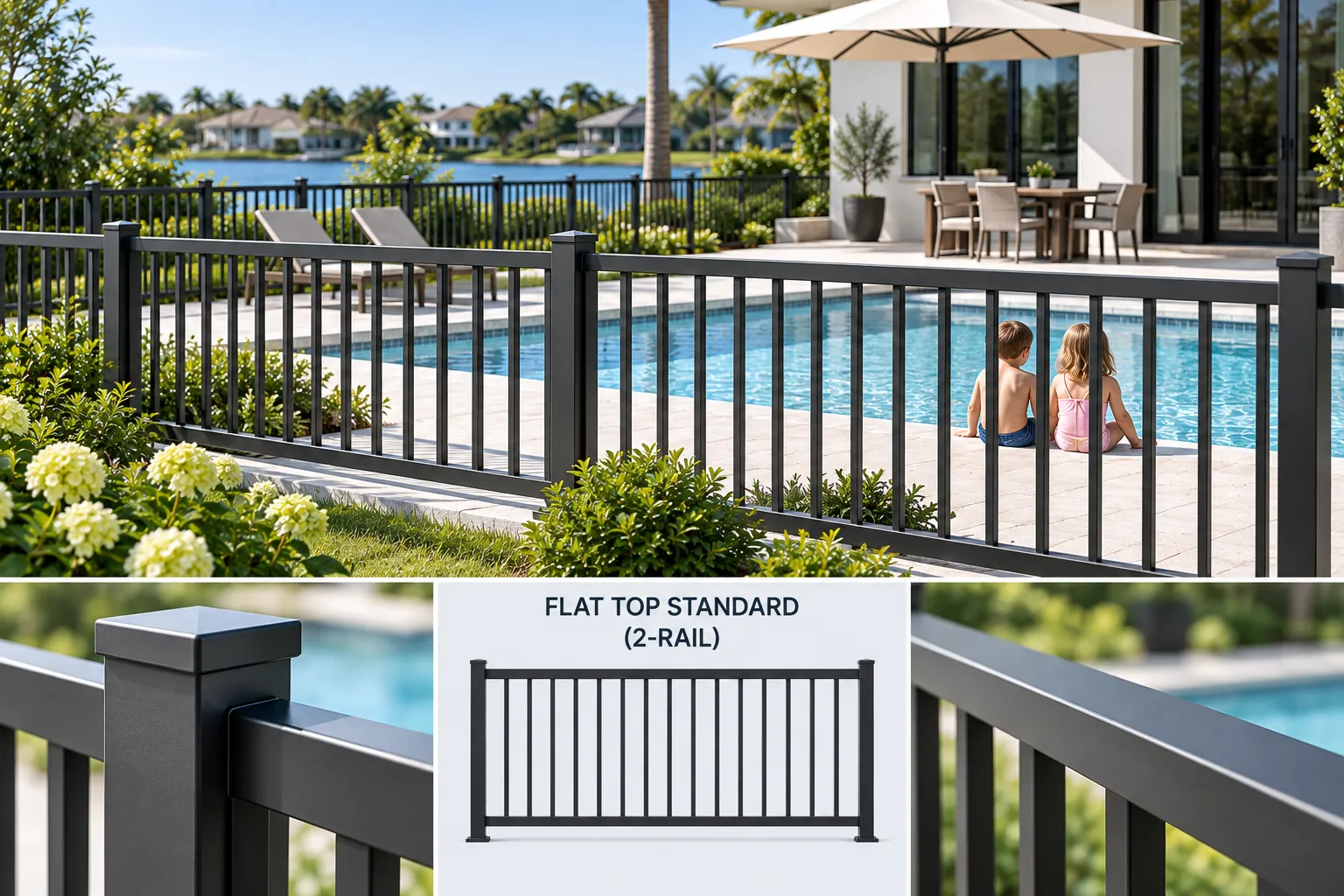

Flat Top Standard (2-Rail)
Clean horizontal top rail with zero sharp spear points, maximizing perimeter visibility and child-safe poolside protection across our high-durability perimeter products .
- Standard Heights: 48" / 54" Pool Code
- Rail Profile: 1-1/8" x 1" Extruded Channel
- Post Specification: 2" x 2" (.062" - .125" Wall)

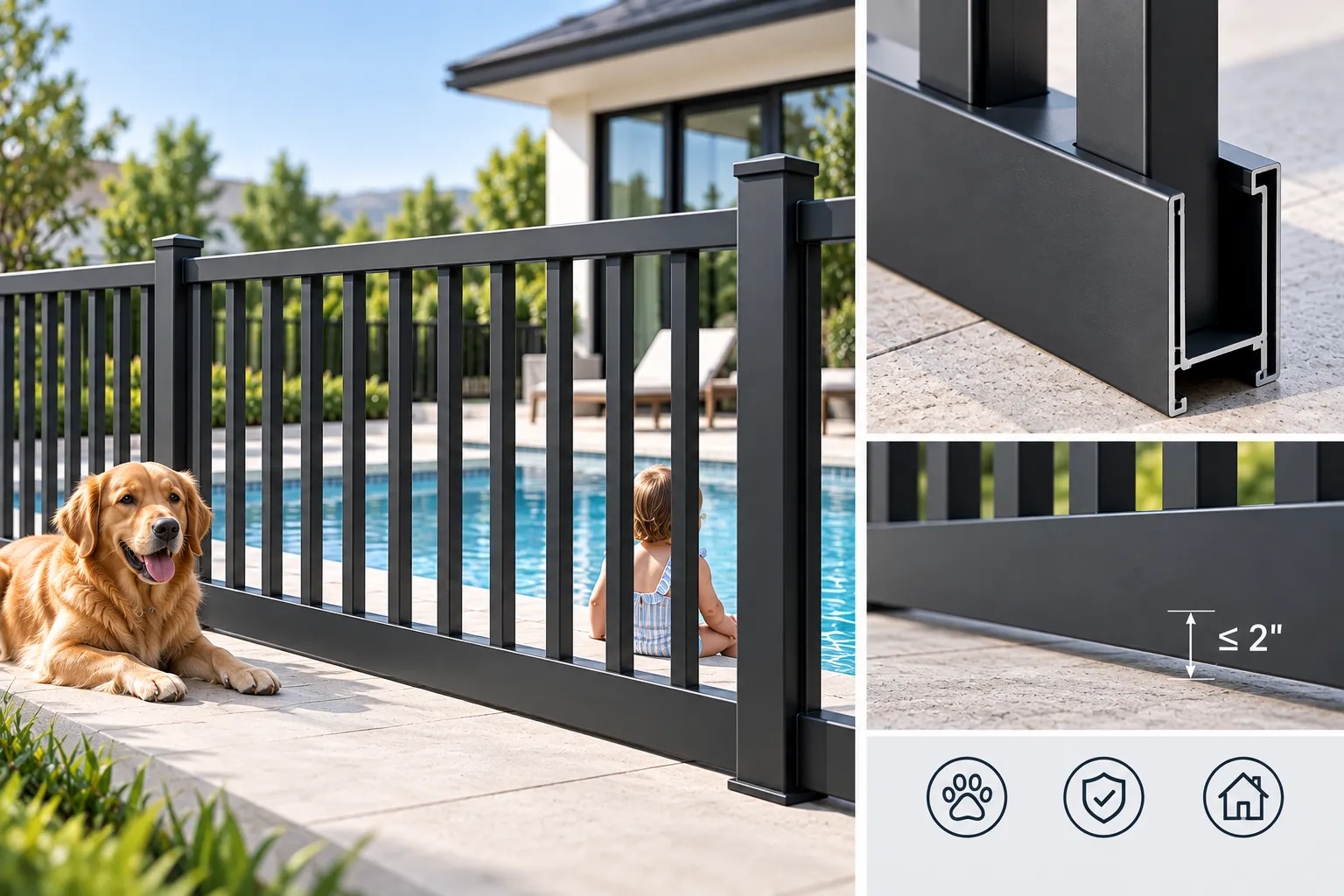

Flush Bottom Profile
Bottom rail encloses all vertical pickets to eliminate ground footholds, meet ≤2" deck gap codes, and protect family pets, styled to match our premium aluminum windows and exterior systems.
- Standard Heights: 48" / 54" Flat Inset
- Picket Spacing: 3-13/16" Clear Gap
- Post Specification: 2.5" x 2.5" Base Flange Ready

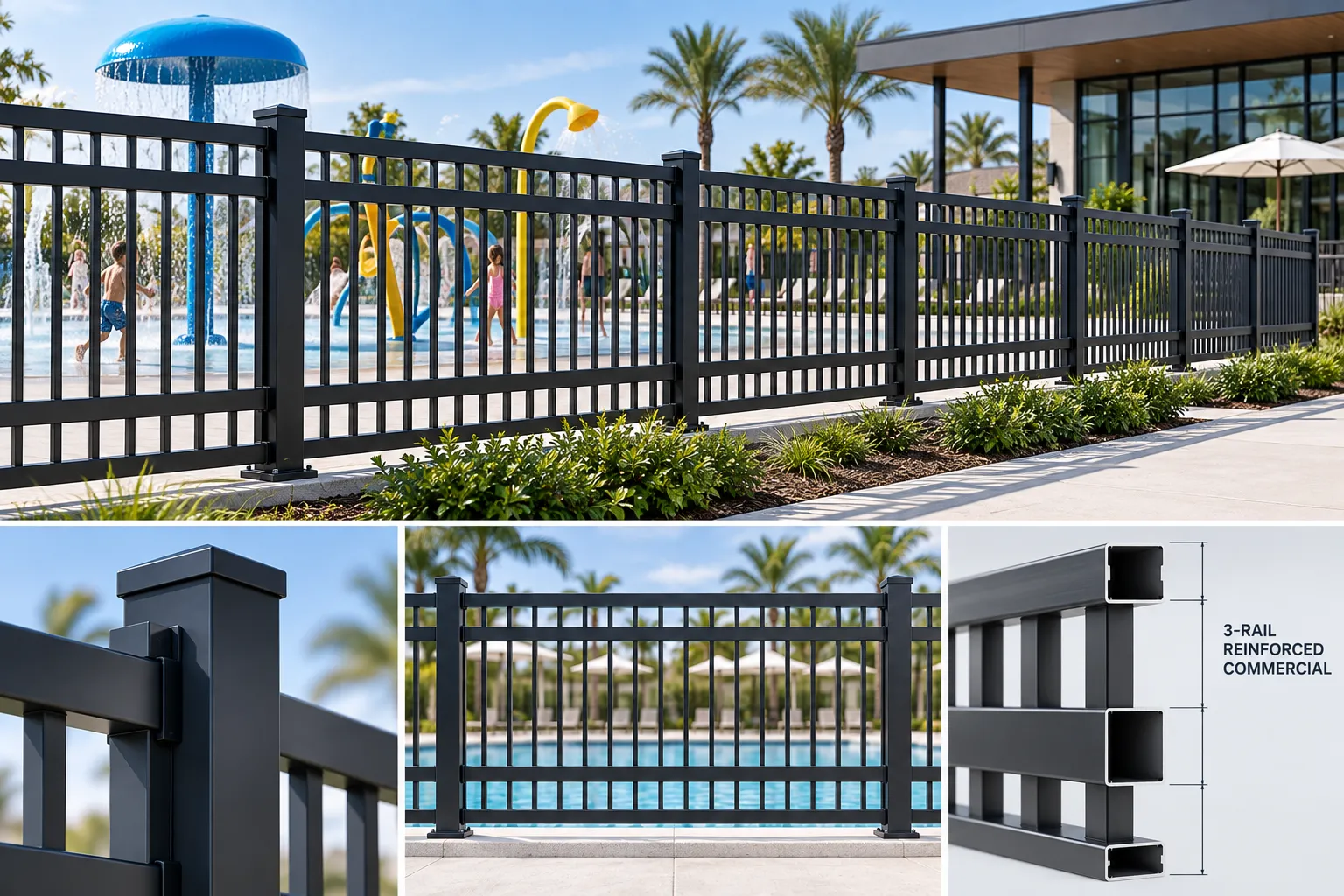

3-Rail Reinforced Commercial
Engineered for extended post spans, municipal splash parks, and resort pools demanding superior lateral load resistance alongside modern patio enclosures and sliding windows.
- Standard Heights: 54" / 60" / 72" Heavy-Duty
- Rail Profile: 1-1/2" x 1-1/4" Heavy Channel
- Post Specification: 2.5" / 3" Core-Drill Structural

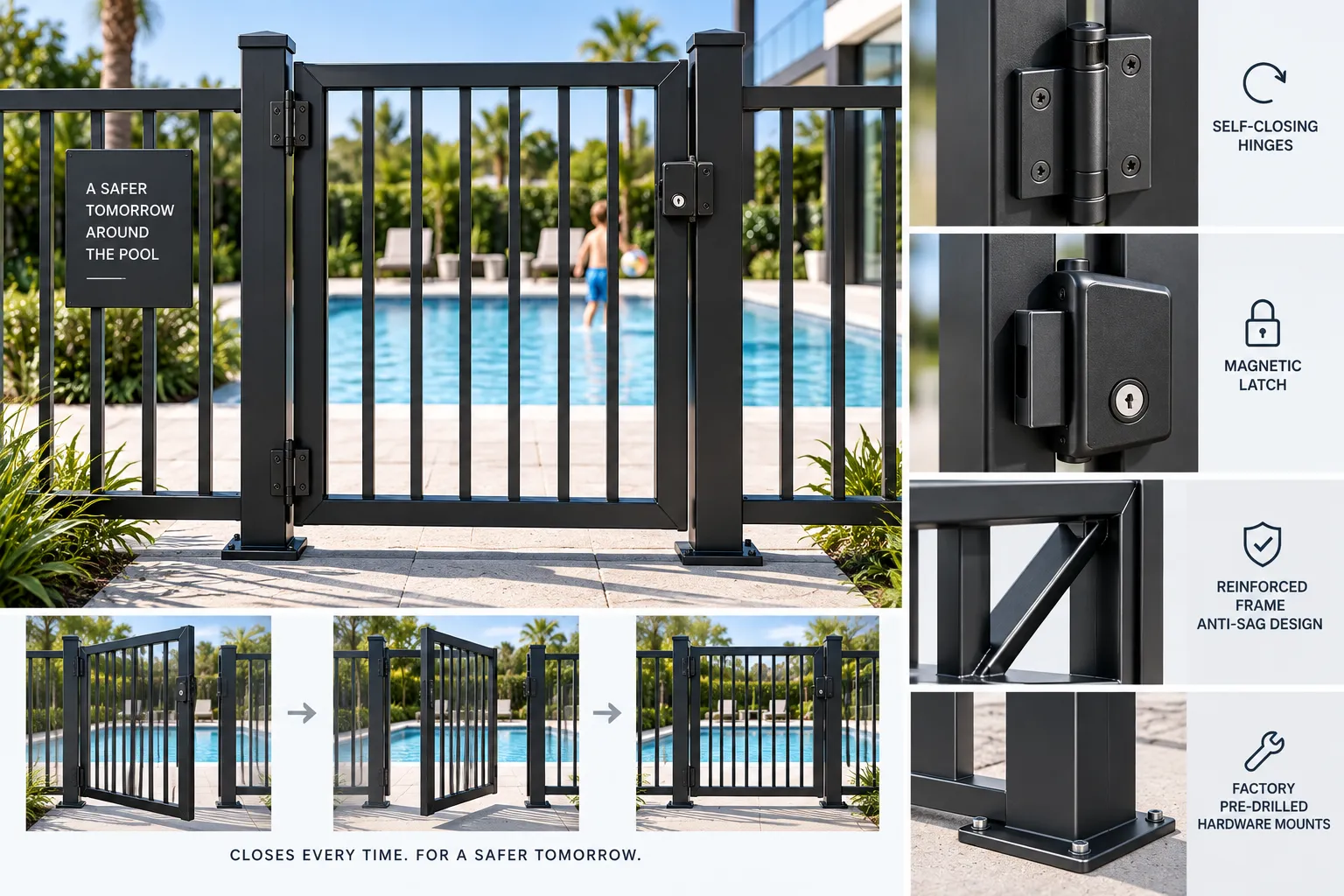

Precision Pool Fence Gates & Self-Closing Hardware Systems
At Orient Juko Metal Art, we recognize that the gate represents the single most critical safety point in any pool barrier enclosure. Manufactured alongside our precision architectural products, our engineered aluminum pool fence gates are built with reinforced perimeter frames, diagonal anti-sag internal bracing, and factory-pre-drilled hardware mounts. This structural precision prevents gate droop over time, guaranteeing that self-closing hinges and magnetic latch mechanisms align seamlessly for 100% fail-safe closure every single time.
Component Engineering Details
Click any interactive hardware point on the diagram to inspect exact metallurgical specifications, cycle test ratings exceeding 100,000 cycles, and full compliance data with BOCA, IRC, and ASTM safety standards.
Dual-Action Magnetic Pool Latches
Engineered to satisfy strict BOCA and MagnaLatch-equivalent safety standards, our top-pull magnetic pool latches mount at a child-proof height of 54 inches or higher above finished grade. Built to provide reliable barrier protection alongside exterior perimeter structures and sliding-windows, the permanent rare-earth magnetic mechanism eliminates mechanical resistance on closing, while the deliberate upward-lift release prevents small children and toddlers from disengaging the lock mechanism.
Heavy-Duty Hydraulic & Spring Hinges
Fabricated with marine-grade 316 stainless steel internal tension springs and dampening cores matched to the durability standards of our structural aluminum-windows systems, our self-closing pool hinges offer micro-adjustable closing speed and latching force. Rated for high-cycle residential and commercial pool gates, they reliably return the gate to a securely latched position from any open angle without slamming or rebounding ajar.

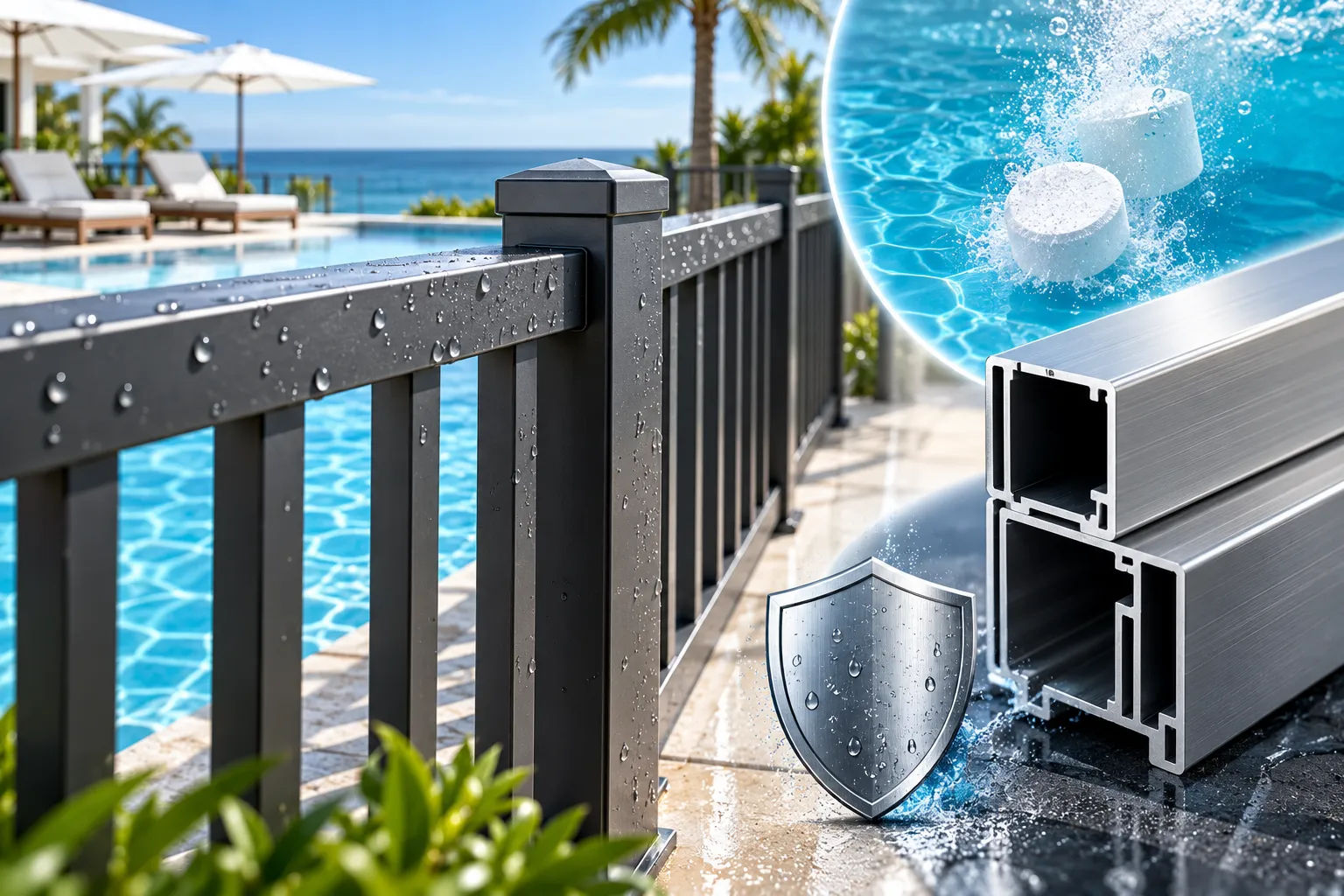

Marine-Grade Chlorine Resistance & Structural 6063-T6 Metallurgy
At Orient Juko Metal Art, we engineer our pool safety barriers to thrive in the most aggressive aquatic microclimates. Constant splashback, concentrated chlorine chemical vapors, and coastal salt fog rapidly corrode conventional metals. By pairing virgin structural aluminum alloy extrusions with automated architectural surface passivation, our corrosion resistant fence systems deliver uncompromising structural integrity without chalking, blistering, or red rust.
The 6063-T6 Aluminum Metallurgy Advantage
Unlike wrought iron and carbon steel that oxidize at weld joints, or natural timber that rots and splinters under constant moisture, our high-tensile 6063-T6 aluminum profiles are naturally immune to rust. Drawing on decades of architectural profile manufacturing expertise—which also informs our premium casement windows—our extruded fencing components deliver the ideal balance of high yield strength, impact resilience, and long-term dimensional stability across extreme thermal cycles.
5-Stage Pre-Treatment
Chrome-free deoxidation and nano-ceramic conversion sealing create a molecular mechanical bond that prevents sub-film corrosion creep.
AAMA 2604/2605 Curing
Electrostatic thermoset architectural polyester coatings deliver superior color retention, UV resistance, and gloss stability under intense sunlight.
Salt Water Pool Fencing
Engineered for chlorine generators and coastal environments, validated to exceed 5,000 continuous hours of ASTM B117 salt fog exposure.
Zero-Repaint Lifecycle
Eliminates labor-intensive sanding, scraping, and recoating, dramatically reducing lifetime maintenance expenses for residential and commercial assets.
Aluminum Pool Fence Specifications & Sizing Matrix
Built to satisfy IBC, BOCA, and ASTM F1908 safety criteria. Orient Juko Metal Art combines in-house die tooling and precision extrusion lines to manufacture code-compliant, site-adaptable aluminum pool barriers for residential and commercial perimeters. Explore our full range of products to find the perfect security solution for your project.
Standard Barrier Dimensional Profiles
Extruded using high-yield 6063-T6 structural architectural alloy.
| Series Configuration | Nominal Heights | Panel Widths | Vertical Picket Dimensions | Horizontal Rail Profile | Structural Post Options | Picket Clear Spacing |
|---|---|---|---|---|---|---|
| Residential 48-Flush | 48 in (1219 mm) | 6 ft (1.83 m) / 8 ft (2.44 m) | 5/8 in × 5/8 in × 0.050 in | 1-1/8 in × 1 in × 0.080 in | 2 in × 2 in × 0.062 in | 3.875 in (Child-Safe) |
| Residential 54-Flat Top | 54 in (1372 mm) | 6 ft (1.83 m) / 8 ft (2.44 m) | 5/8 in × 5/8 in × 0.050 in | 1-1/8 in × 1 in × 0.080 in | 2 in × 2 in × 0.062 in | 3.875 in (Child-Safe) |
| Commercial 60-Heavy | 60 in (1524 mm) | 6 ft (1.83 m) / 8 ft (2.44 m) | 3/4 in × 3/4 in × 0.060 in | 1-1/4 in × 1-1/4 in × 0.090 in | 2.5 in × 2.5 in × 0.090 in | 3.750 in (High-Traffic) |
| Engineered Custom Assembly | 36 in to 96 in (Custom) | Configured per Plan Specs | 5/8 in, 3/4 in, or 1 in Square | Reinforced Multi-Cell Rail | 2.5 in to 4.0 in Heavy Flanged | Calibrated to Project Code |
Slope & Racking Adaptability
Follows changing site grades precisely to eliminate bottom climbing hazards.
- Standard Field Racking: Up to 24 in drop per 8 ft.
- Extreme Sloped Sections: Up to 48 in grade change.
- Stepped Grade Layout: Factory-welded transitions.
Powder Coating & Finish
Multi-stage pretreated with exterior-grade AAMA 2604/2605 thermoset powder coating. Complement your fence with our high-performance aluminum windows for a cohesive architectural aesthetic.
Custom Fabrication
OEM die-tooling capabilities for specialized commercial projects and hardware integrations. We also offer custom casement windows to match your specific design requirements.
Download Technical Data & CAD Submittal Files
Get instant access to DWG connection details, Revit BIM families, and 3-part CSI specifications.

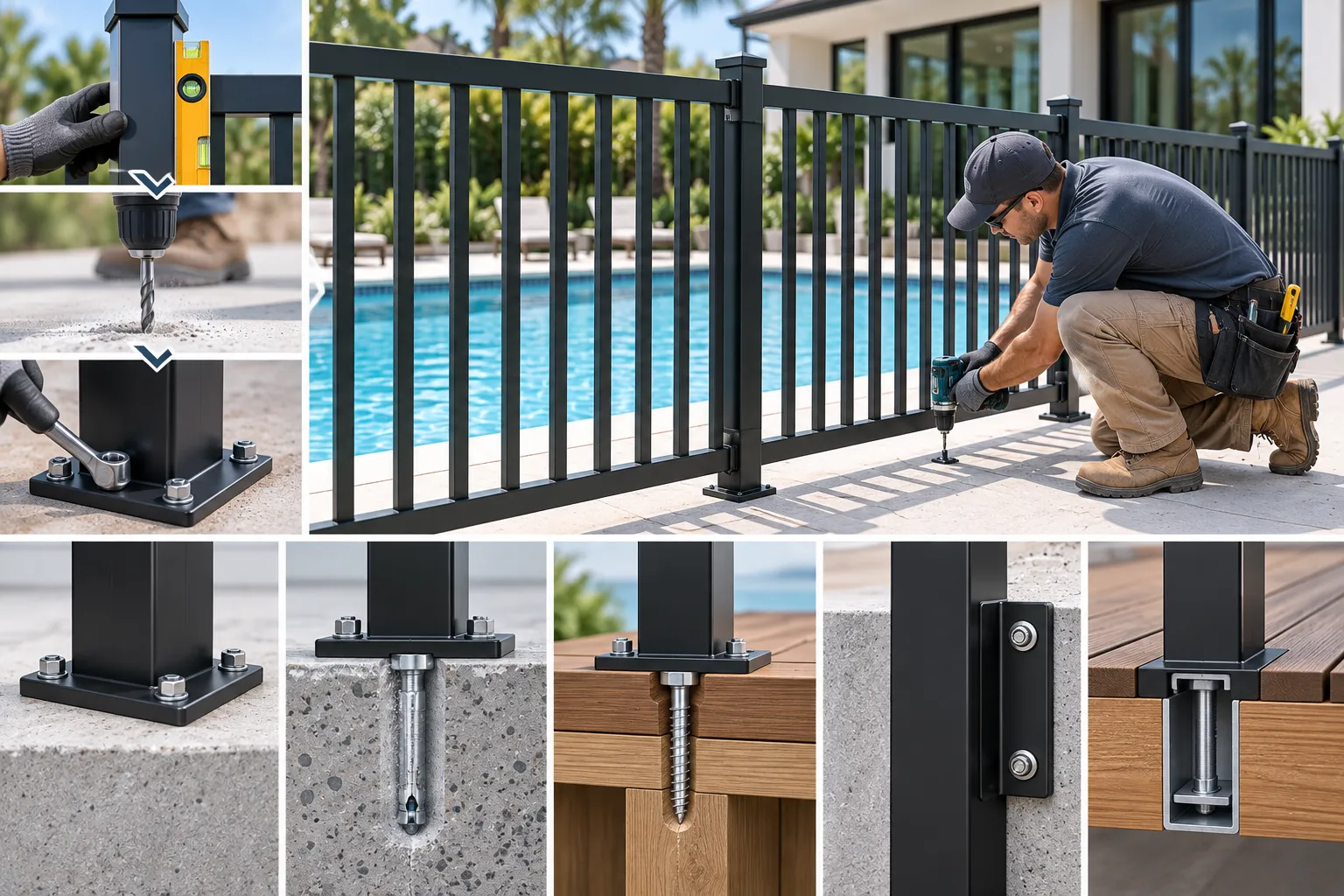

Comprehensive Pool Fence Installation Guide & Deck Anchoring Solutions
Achieving a fully code-compliant pool perimeter demands precise layout geometry and engineered substrate anchoring. Orient Juko Metal Art engineers complete aluminum fence systems—equipped with pre-punched posts, dedicated safety hardware, and comprehensive installation protocols—to ensure structural rigidity and code compliance across poured concrete, paver decks, timber framing, and perimeter turf.
Need Engineering Submittals or On-Site Mounting Details?
Orient Juko Metal Art provides pre-punched aluminum posts, factory-engineered hardware kits, and certified CAD installation drawings to guarantee code compliance for residential builds and commercial hospitality developments worldwide, whether coordinating with patio transitions or connecting indoor-outdoor spaces featuring lift-and-slide doors .
Frequently Asked Questions & Pool Safety Guide
Expert answers to common questions regarding pool fence height regulations, code compliance, material performance, and ongoing maintenance.
Need Project Code Review & Engineering Support?
Orient Juko Metal Art supports contractors, architects, and property developers with comprehensive technical assistance. Our team provides fast municipal code verification, CAD shop drawings, hardware integration advice, and optimized panel layouts for complex pool enclosures, exterior facades, and adjacent casement windows installations.
