Modular Aluminum Fence Panel Styles & Screening Configurations
Manufactured by Orient Juko Metal Art, our precision-extruded 6063-T5 aluminum fence panels provide versatile architectural solutions for residential developments, perimeter security, and exterior utility screening. Engineered with CNC-milled structural profiles and integrated internal channel tracks, each panel delivers clean sightlines, hidden fasteners, and structural stability against severe wind loads.
Select from configurable horizontal slats with calibrated gap spacing, 45-degree angled louver profiles for mechanical airflow, heavy-duty anti-climb commercial infills, or interlocking tongue-and-groove boards engineered for complete visual privacy and acoustic dampening. Explore our full range of products to find the perfect match for your project requirements.

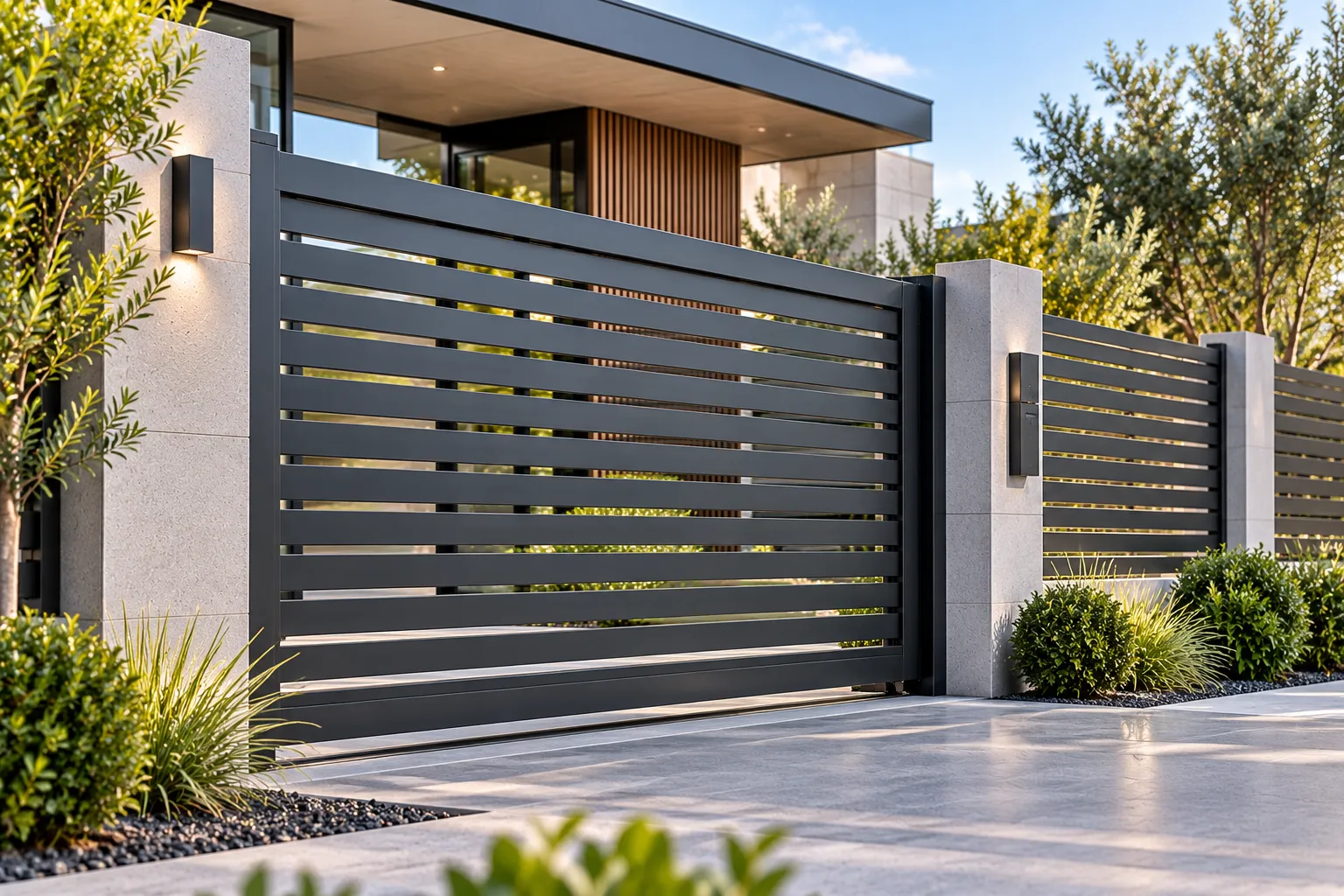

Horizontal Slat Modular Panels
Modern linear profiles providing balanced ventilation and perimeter demarcation.
Inquire Profile →

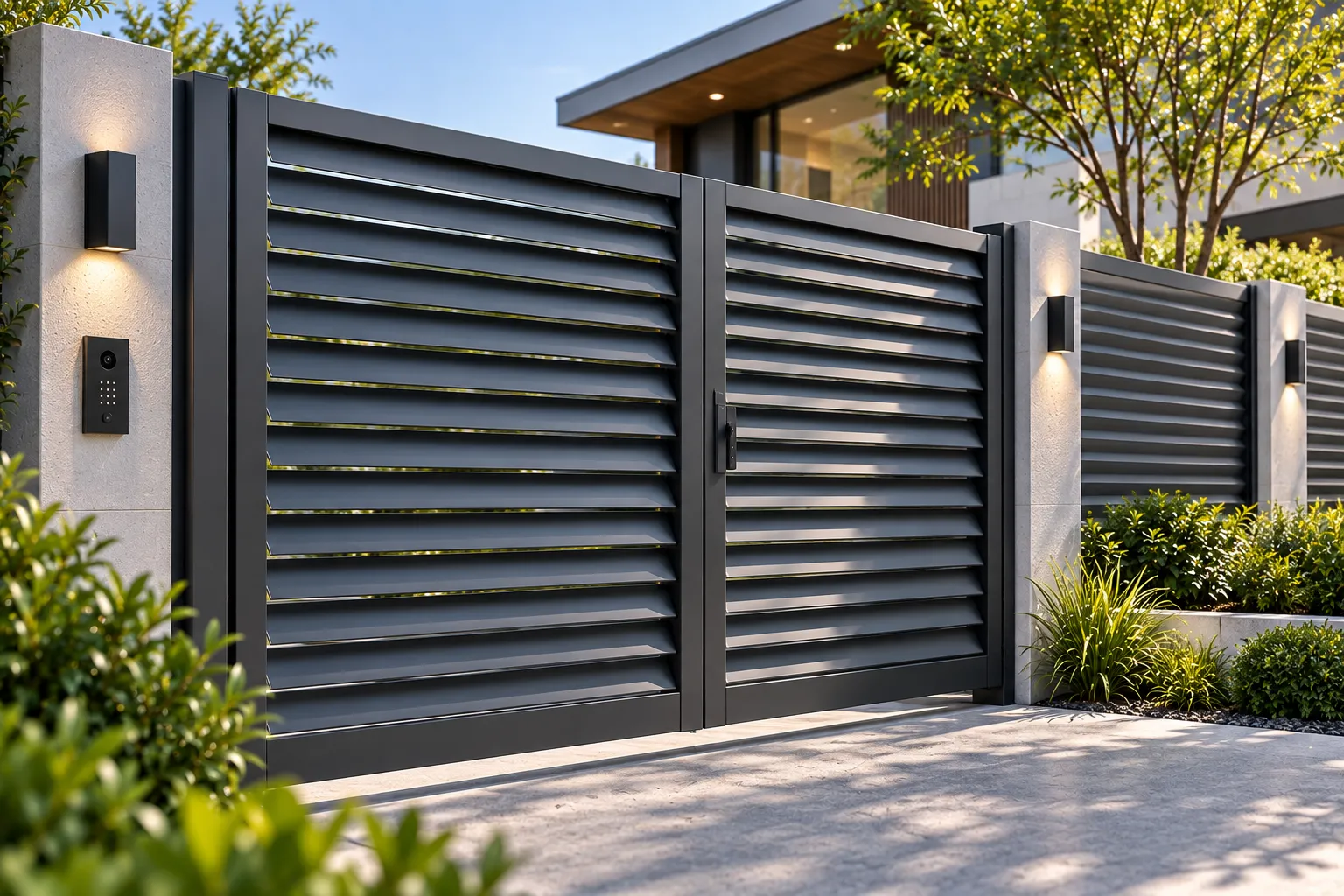

Louvered Airflow Privacy Panels
Aerodynamically pitched 45-degree louvers designed for zero-sightline privacy.
Inquire Profile →

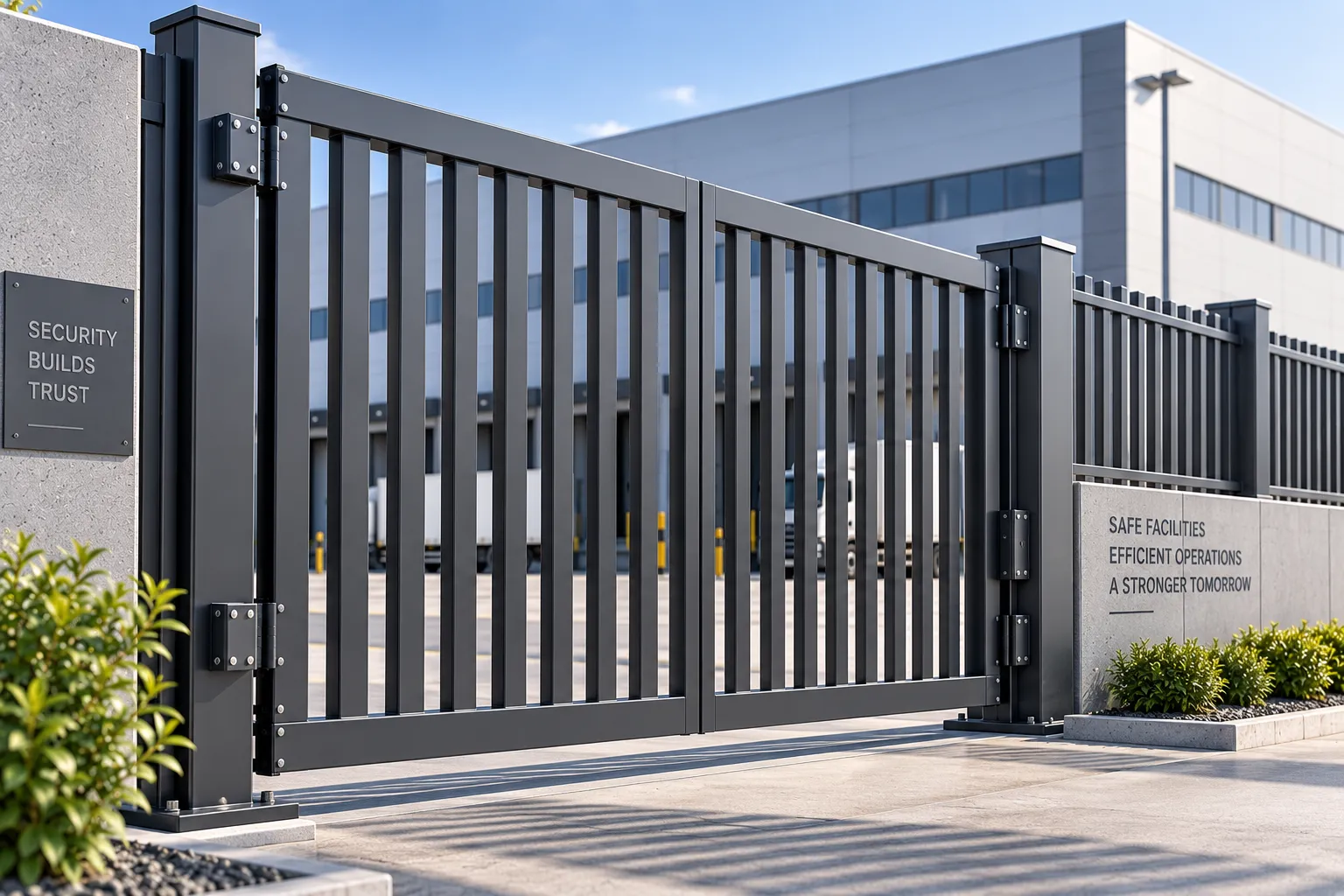

Commercial Heavy-Duty Infill
Reinforced heavy-wall vertical pickets engineered for shear resistance.
Inquire Profile →Configurable Sightlines, Airflow Ratios, and Infill Aerodynamics
Architectural specification demands an exact balance between aesthetic privacy, structural integrity, and local zoning code requirements. Our modular aluminum fence panels are manufactured with precision-extruded 6063-T5 structural aluminum alloys.
Standard Engineering Specifications and Dimensional Capabilities
Orient Juko Metal Art manufactures high-precision extruded aluminum fence panels engineered to satisfy rigorous architectural requirements, regional building codes, and hurricane-zone wind load standards. Our expertise in aluminum fabrication ensures that every component meets the same high-performance standards found in our premium window systems. Review verified alloy properties, structural profile thickness benchmarks, standard fence heights, and custom extrusion capabilities designed for seamless field integration.

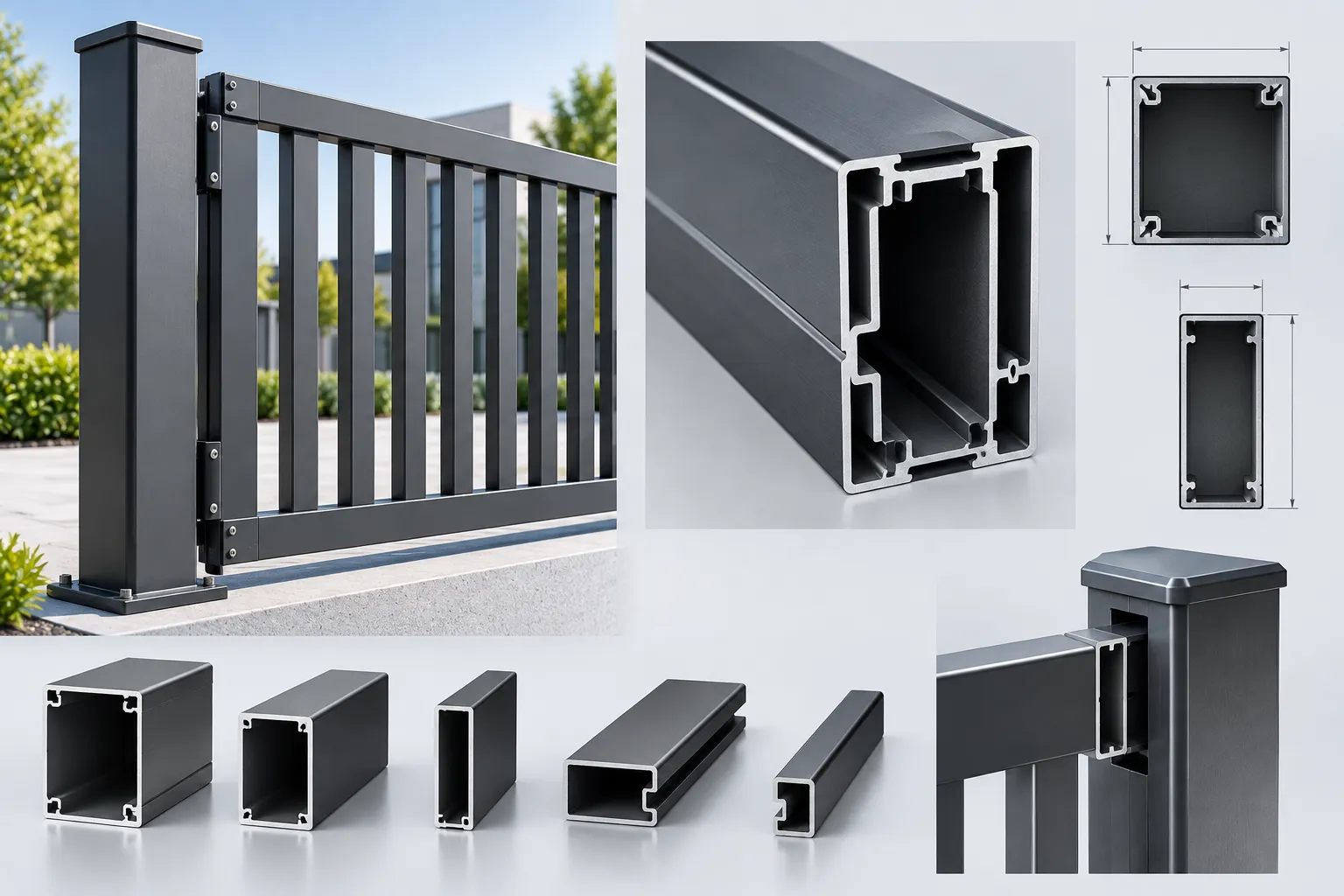

Profile Section & Wall Geometry
Heavy-duty multi-chamber internal ribs substantially improve section modulus and torsional rigidity across wide spans, preventing mid-panel sag and lateral deflection under extreme wind loads.
Bespoke Tooling & Custom Profiles
Require specialized slat spacing, non-standard channel dimensions, or reinforced profile thickness? Orient Juko Metal Art supports custom extrusion dies, CNC slotting patterns, and precision rake angles directly from your architectural submittal drawings.
- Custom extrusion tooling completed within 10–14 days
- Precision CNC punching, slotting, and custom miter cuts
- Full 2D CAD details, Revit BIM families, and structural calcs
Technical Specification & Sizing Matrix
Standard dimensional limits, alloy specifications, and profile thickness benchmarks
| System Component | Standard Specification | Heavy-Duty & Custom Options | Manufacturing Standard |
|---|---|---|---|
| Alloy & Temper | Extruded 6063-T5 Architectural Alloy | 6061-T6 High-Load Structural Grade | ASTM B221 / EN 573-3 |
| Standard Panel Widths | 1800mm (6 ft) • 2000mm • 2400mm (8 ft) | Continuous spans up to 3000mm with internal ribs | ±1.0mm Length Tolerance |
| Standard Fence Heights | 900mm (3 ft) to 2100mm (7 ft) modular heights | Up to 2400mm (8 ft) & multi-tier stacked panels | ±1.0mm Height Tolerance |
| Profile Wall Thickness | 1.5mm to 1.8mm Slat & Infill Wall Sections | 2.0mm to 2.5mm Heavy-Duty Structural Sections | ASTM B221 / GB/T 5237 |
| Horizontal Rails | 40 × 40mm Slotted Channel with Snap Cover | 50 × 50mm Heavy Internal Spline Track | Anti-Sag Load Rated |
| Structural Posts | 60 × 60mm • 75 × 75mm (2.0mm Wall) | 100 × 100mm (3.0mm Wall) Hurricane Zones | Flange Base or In-Ground |
| Fasteners & Hardware | Concealed 304 Stainless Steel Screws | Marine-Grade 316 Stainless Fastener Kits | ISO 3506 / ANSI B18 |
Mechanical Load Resistance & Deflection Limits
Standard 6063-T5 aluminum fence panels deliver an ultimate tensile strength exceeding 205 MPa with a Webster hardness rating of ≥ 12 HW. Optimized cross-sectional moments of inertia keep mid-span horizontal deflection well within stringent L/180 criteria under simulated 140 mph wind loads.
Modular Sizing Tolerances & Slat Spacing
Factory CNC cutting maintains length tolerances within ±0.5mm, ensuring straightforward modular interlocking on site. Engineered spacer inserts support variable slat gap configurations (0mm tongue-and-groove privacy, 10mm, 20mm, or 30mm ventilation gaps) to balance airflow and line-of-sight privacy.
Architectural Submittal & Structural Engineering Validation
Orient Juko Metal Art heavy-duty aluminum panels can be configured for specialized site wind pressures up to 140 mph across Exposure Categories B, C, and D. Fully dimensioned shop drawings, structural section properties, and PE-stamped calculation packages are available upon request for commercial permitting and architectural submittals. Explore our sliding windows for complementary architectural hardware solutions.
Advanced Modular Engineering & Fast-Track Assembly System
Orient Juko Metal Art precision-engineered modular aluminum fence panels streamline commercial perimeter installations and high-end residential boundary projects. By combining zero-exposed-fastener mechanics with dynamic terrain racking and an internal anti-deflection structural core, our prefabricated systems eliminate costly on-site fabrication, guarantee consistent ground clearances across steep inclines, and prevent horizontal sagging over long spans.

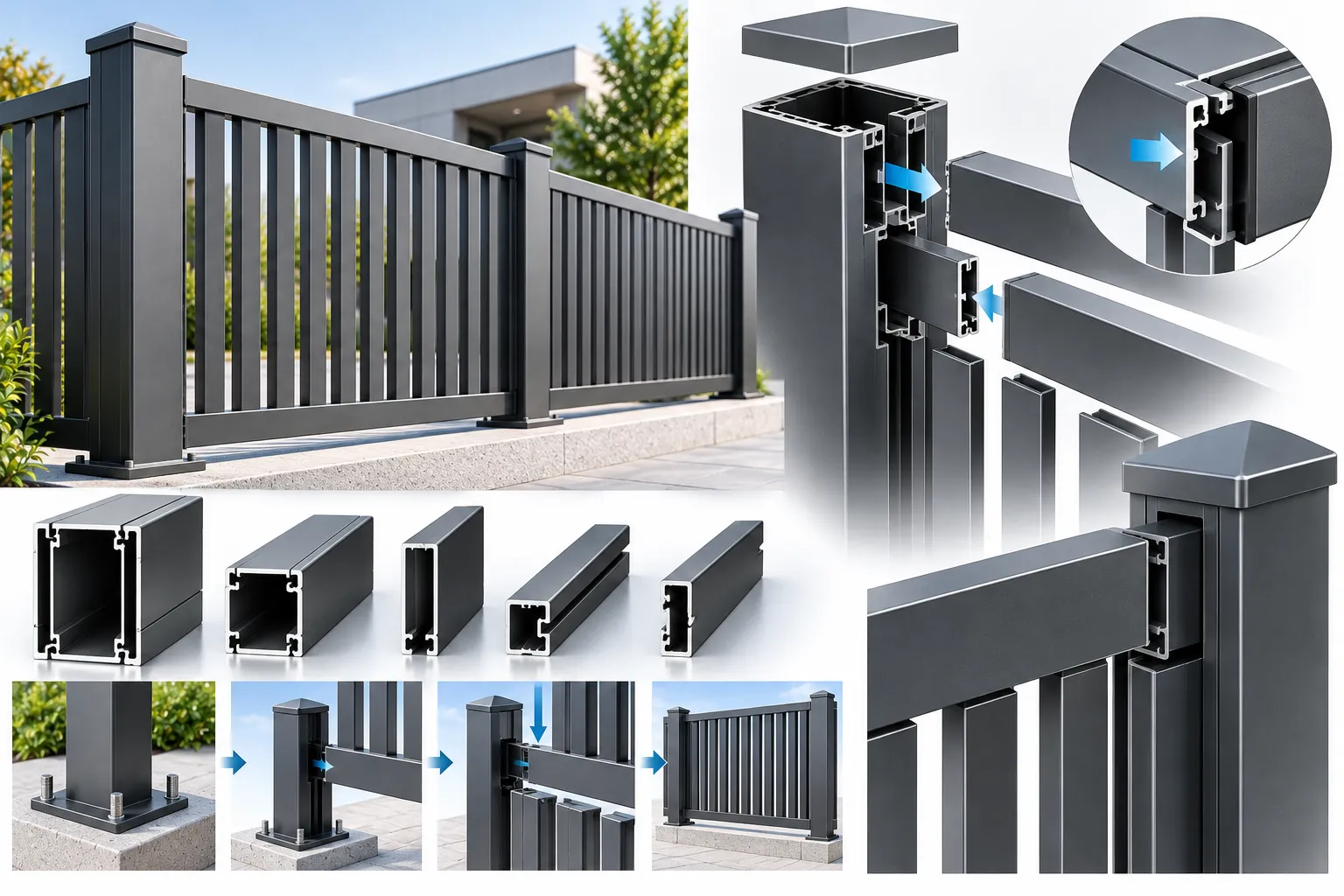

Precision-Interlocking Component Architecture
Every aluminum fence panel module utilizes extruded structural 6063-T5 alloy profiles engineered for quick snap-lock engagement. This industrialized modular system facilitates high-speed field assembly without specialized welding, custom drilling, or exposed self-tapping screws.
Four Core Mechanical Innovations
Engineered to overcome common on-site installation bottlenecks and long-term structural failure points.
Patented Concealed Fastener System
Internal hidden fastener channels shield all screw heads inside the aluminum profile track. This completely eliminates surface-penetrating hardware, preventing galvanic corrosion, rust streaks, and unauthorized tampering while delivering clean architectural lines.
- Corrosion Prevention: Zero exposed hardware penetrations
- Tamper Resistance: Fully enclosed interlocking locking tracks
Rackable Slope & Contour Adaptation
Delivering exceptional ground-level adaptability, integrated dynamic pivot joints adjust smoothly to rolling topography and hillside gradients up to 30 degrees. Installers achieve continuous, flush perimeter lines along undulating terrain without stepped panel cuts, custom angled brackets, or uneven ground gaps.
- Continuous Grade: Follows ground slope seamlessly
- Zero Field Modifications: No custom bracket welding required
Snap-Lock Modular Fast-Track Assembly
Precision-extruded snap-fit slat receivers secure individual slats directly into post and rail tracks with positive mechanical locking. This pre-engineered assembly method cuts on-site panel construction time by up to 60%, reducing crew overhead and project schedules.
- Rapid Deployment: Simplified tool-free slat positioning
- Consistent Spacing: Integrated indexing blocks eliminate measuring
Anti-Sag High-Span Structural Integrity
Reinforced internal web stiffeners and heavy-duty 6063-T5 aluminum corner gussets prevent mid-span deflection and frame warping. Our fence panels retain true squareness and structural rigidity across wide spans reaching up to 2.4 meters (8 feet).
- Zero Mid-Span Sag: Internal webbing reinforces horizontal rails
- High Load Resistance: Rated to withstand severe wind pressures
Modular Assembly Workflow: Speed, Safety, and Structural Precision
Traditional steel or timber fence construction requires laborious measuring, drilling, field cutting, and continuous surface repainting. Orient Juko Metal Art streamlines this process with a factory-prefabricated modular aluminum panel architecture that simplifies installation and maintenance into four straightforward steps.
Structural Post Positioning & Track Alignment
Core-drill aluminum posts into concrete footings or mount base flange plates to structural deck substrates. Pre-machined internal receiver channels inside 60x60mm or 75x75mm posts directly seat horizontal rails without external bracket hardware.
Snap-Lock Modular Slat Integration
Slide horizontal or vertical slats into the continuous profile channels. Calibrated snap-fit spacer blocks establish exact gap clearances (0mm for 100% full privacy, 10mm for semi-privacy, or 20mm for high-airflow screening) automatically without manual measuring.
Internal Channel Locking & Fastener Concealment
Fasten top rail retaining clips to secure the slat assembly under calibrated compression. Extruded snap covers seal the inner channel, enclosing all structural fasteners away from rain, salt spray, and atmospheric moisture.
Stepless Slope Racking Adjustment
Across slopes and grading changes up to 30 degrees, dynamic internal pivot points articulate freely within post tracks. Panels self-adjust flush to the ground contour while posts remain vertical, preserving a uniform architectural sightline.
Mechanical Specifications Matrix
Engineering data and load metrics for architects, structural engineers, and general contractors validating panel specifications and project tolerances.
| Engineering Feature | Technical Standard |
|---|---|
| Extrusion Alloy | 6063-T5 Structural Grade Aluminum |
| Profile Wall Thickness | 1.5mm to 2.5mm heavy-duty structural profiles |
| Fastener Engineering | 100% internal concealed track mechanism |
| Racking Capability | Stepless dynamic racking 0° to 30° grade |
| Span Deflection Control | Internal web ribs; < L/180 deflection at 8ft |
| Wind Load Rating | Tested to withstand up to 140 mph (ASTM E330) |
| Coating Compliance | AAMA 2604 / AAMA 2605 Powder Coating |
| Fire Rating | Class A Non-Combustible Material |
Need CAD & Structural Calculation Packages?
Our engineering team supplies shop drawings, Revit BIM families, and structural wind load calculations tailored to your exact site requirements. Please contact us to request full technical submittals and engineering packages.
Tailored Architectural Applications for Diverse Project Typologies
Orient Juko Metal Art manufactures high-strength aluminum fence panels and architectural infill systems designed to resolve the precise structural, daylighting, and aesthetic challenges of master-planned communities, commercial developments, and industrial sites.

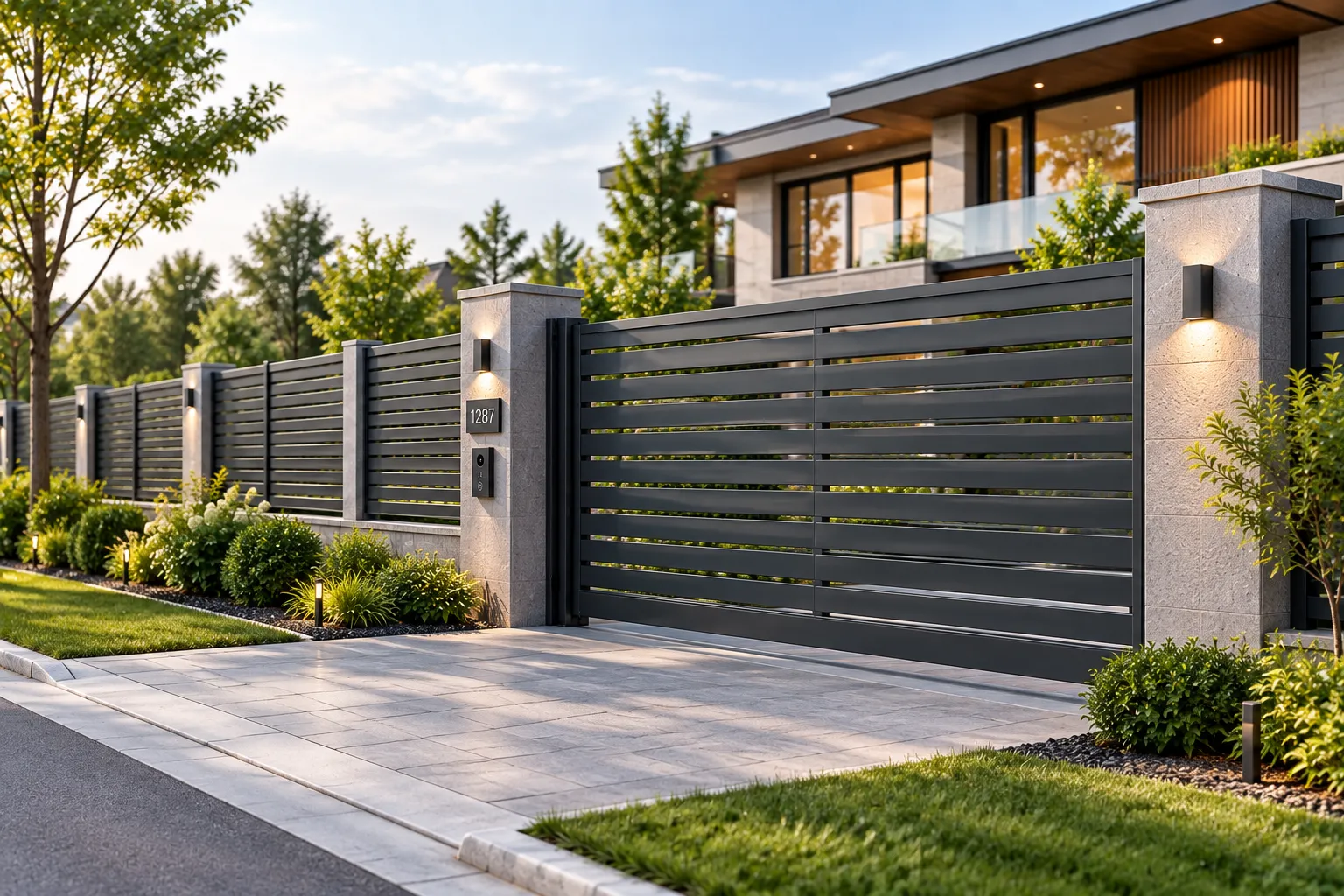

Residential Perimeter Fencing & Private Estates
Engineered for luxury residential communities and modern private estates, our horizontal slat aluminum fence panels harmonize with contemporary building envelopes. Calibrated slat spacing delivers an optimal balance between airflow, natural daylighting, and visual privacy fence requirements while guaranteeing rust-free durability in coastal and humid environments.
Recommended: Horizontal Slat System (0mm–20mm Spacing)

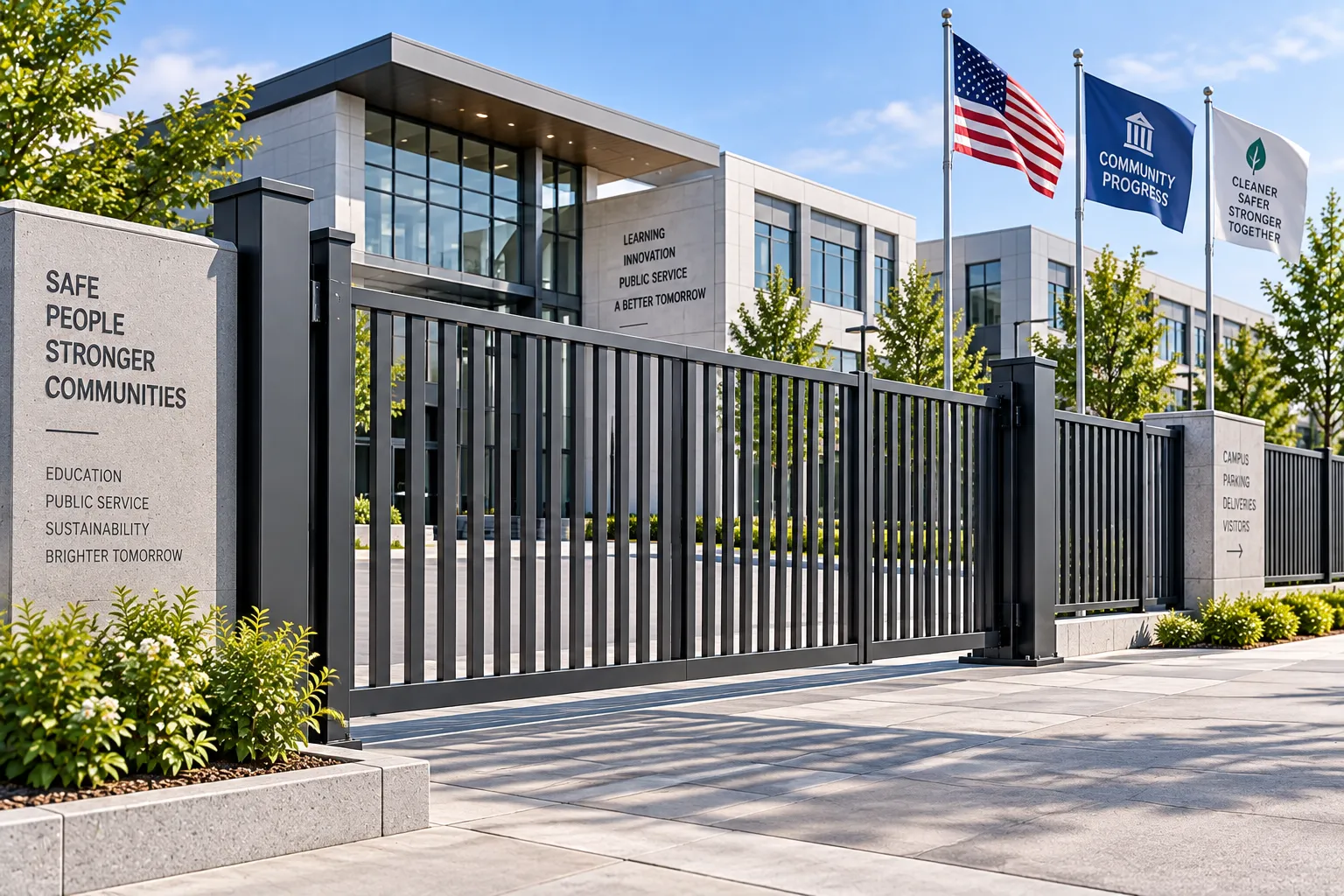

Commercial Campuses & Municipal Facilities
Reinforced with heavy-gauge 6063-T5 aluminum extrusions, our commercial fence panels feature anti-climb geometry and concealed anti-tamper fasteners. Designed for corporate headquarters, logistics centers, and public infrastructure, they deliver certified impact resistance and complete perimeter defense with zero ongoing painting or repointing costs.
Recommended: Heavy-Duty Commercial Infill (2.0mm+ Wall)

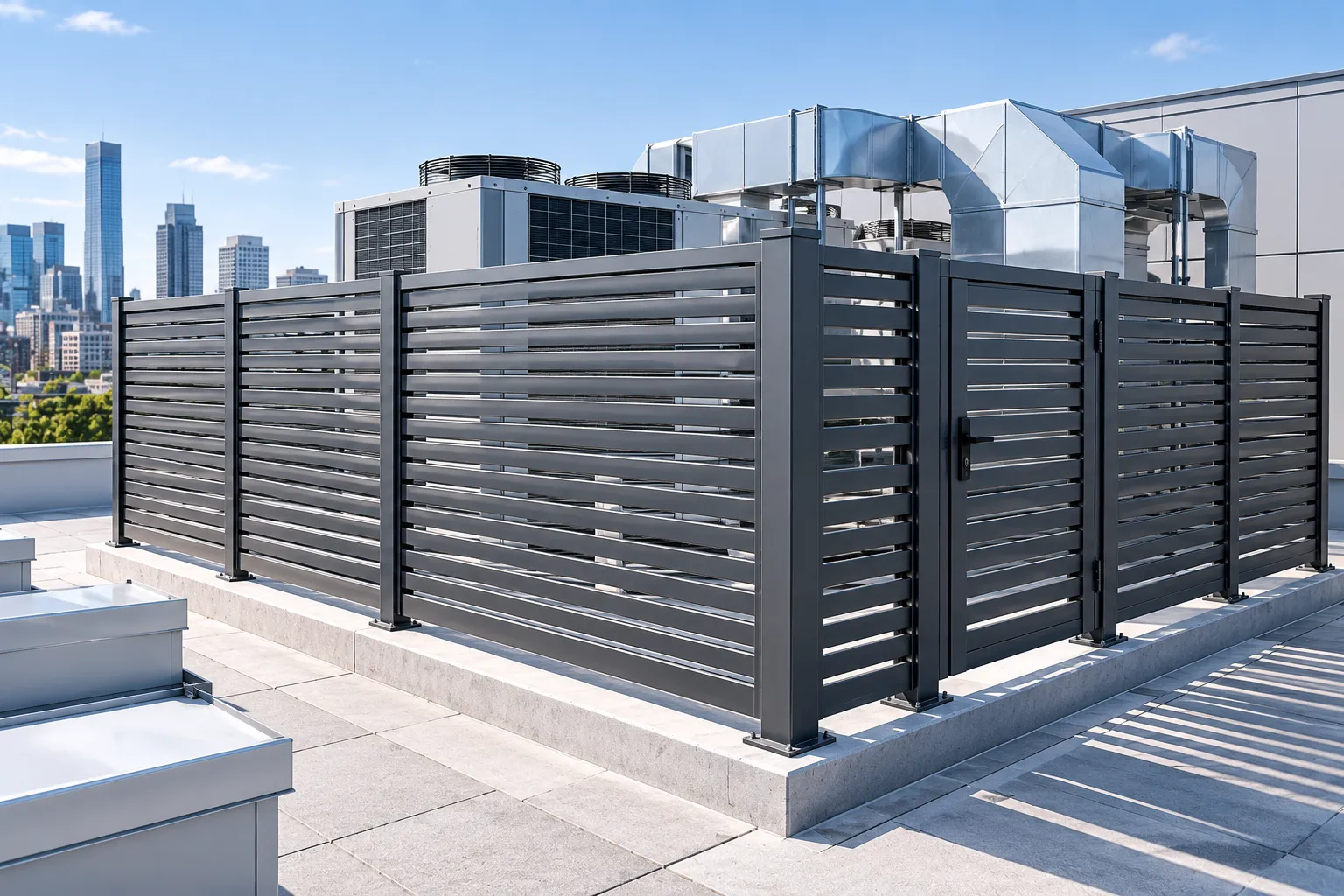

Rooftop HVAC Enclosures & Mechanical Screens
Our louvered aluminum panels utilize fixed 45-degree angled blades to provide 100% sightline blockage while maintaining over 40% free airflow for chillers, cooling towers, and substation gear. Certified Class A non-combustible and engineered to withstand severe rooftop wind pressures, they fully satisfy municipal mechanical screening codes, complementing our high-performance bi-fold windows regarding fire safety and combustibility standards.
Recommended: Louvered Airflow System (45° Fixed Blades)

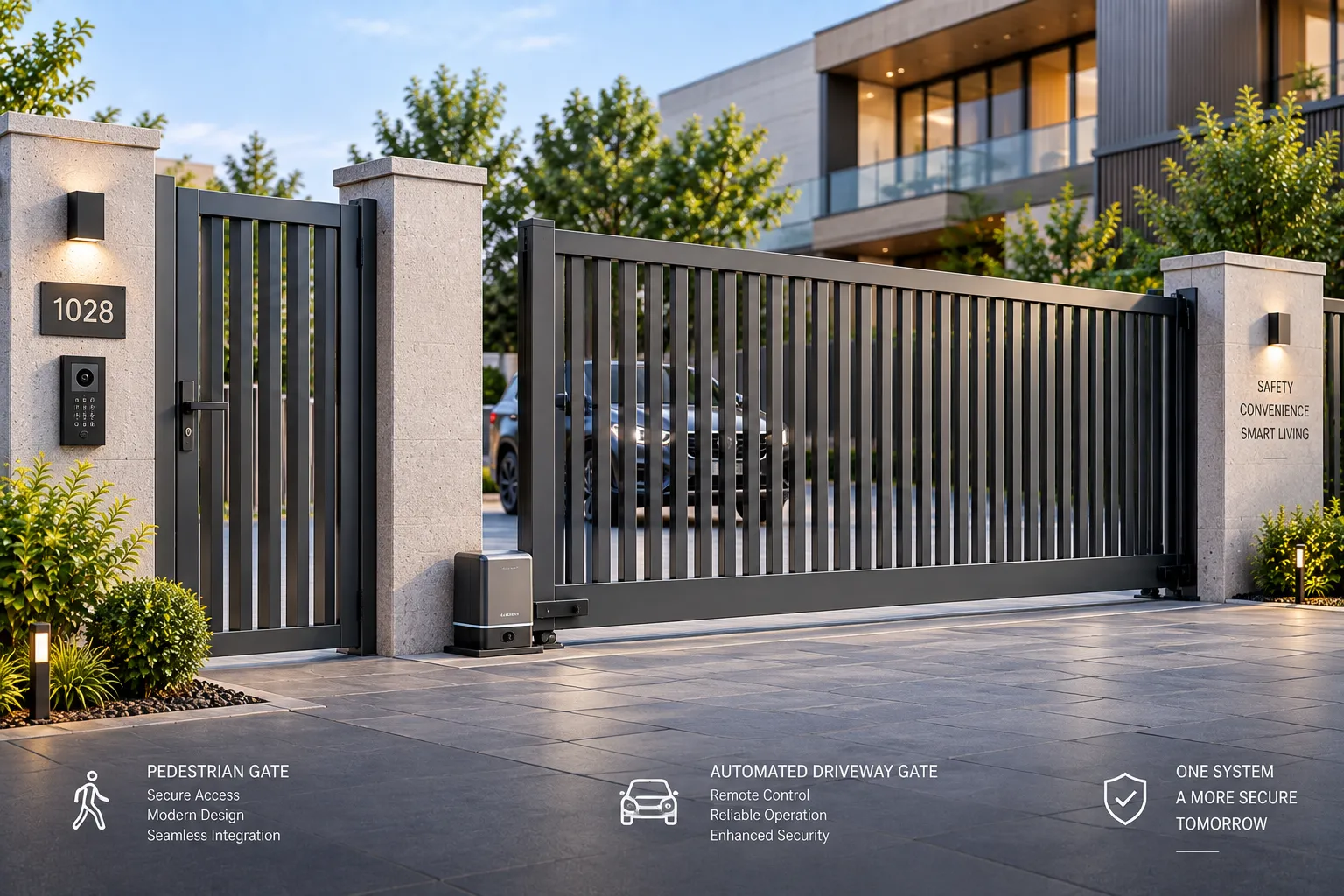

Integrated Pedestrian & Automated Driveway Gates
Orient Juko Metal Art pre-engineers architectural infill panels into synchronized cantilever sliding, swing, and access-control pedestrian gate assemblies. CNC-machined hardware cutouts, reinforced hinge posts, and identical AAMA 2604 powder-coated finishes ensure uninterrupted design continuity, often paired with our sliding doors for seamless structural integration across entire access points.
Recommended: Precision-Matched Structural Gate InfillMaterial Performance Benchmark: Total Cost of Ownership & Durability
Specifying the ideal substrate for architectural and security perimeter fencing requires balancing initial fabrication costs against multi-decade operational expenditures. While alternative materials such as treated lumber, vinyl composite, or painted carbon steel may appear cost-effective during initial procurement, environmental stressors—including UV radiation, marine salt fog, thermal cycling, and continuous wind shear—rapidly degrade lower-grade boundary systems.
Orient Juko Metal Art manufactures modular aluminum fence panels utilizing architectural-grade 6063-T5 alloy to permanently eliminate rot, warping, structural sagging, and repainting cycles. Our expertise in high-performance metal fabrication extends to our premium aluminum windows, which share the same commitment to durability. Below is an engineering benchmark comparing 6063-T5 aluminum with traditional pressure-treated lumber, PVC/WPC composite infills, and welded wrought iron across demanding commercial and residential environments.
| Performance Dimension | Orient Juko 6063-T5 Aluminum | Pressure-Treated Wood | PVC / WPC Composite | Wrought Iron / Carbon Steel |
|---|---|---|---|---|
| Rust & Corrosion Resistance | Impervious to Rust Naturally passivating oxide film combined with AAMA 2604/2605 powder coatings eliminates galvanic corrosion. | Prone to deep fungal rot, moisture saturation, and severe chemical fastener corrosion. | Resistant outer skin, but internal steel reinforcement channels often corrode from trapped condensation. | Highly susceptible to red rust bleeding, weld joint oxidation, and pitting corrosion in humid air. |
| UV Degradation & Thermal Stability | Zero UV Degradation High-grade thermoset powder finishes prevent chalking, surface embrittlement, and thermal warping. | Rapid moisture loss causes surface checking, severe splintering, graying, and longitudinal bowing. | Subject to substantial thermal expansion, permanent sagging, and irreversible UV color fading. | High thermal mass causes expansion stress that cracks surface enamels, accelerating rust formation. |
| Strength-to-Weight Ratio | Superior Strength-to-Weight Engineered internal ribbing resists up to 140 mph wind pressure while minimizing foundation load. | Moderate initial strength that weakens steadily as moisture content and dry rot compromise the core. | Low rigidity; requires thick profiles and heavy internal stiffeners to prevent mid-span creep. | Extremely heavy structure requiring substantial concrete footings and specialized handling equipment. |
| Pest, Termite & Rot Resistance | 100% Biologically Inert Non-porous metal substrate cannot harbor mold, carpenter ants, termites, or bacterial growth. | High vulnerability to subterranean termites, wood-boring insects, and wet rot deterioration. | Resistant to insect infestation, but textured surface grooves frequently trap stubborn algae and mildew. | Fully resistant to biological attack and subterranean pests. |
| Required Annual Maintenance | Virtually Zero Maintenance Requires only occasional water rinsing; eliminates all scraping, chemical sealing, and staining. | Requires annual pressure washing, joint fastening, and full resealing or staining every 24 months. | Requires recurring specialized cleaning solutions to extract ground-in surface dirt and mildew stains. | Demands mechanical wire brushing, spot primer treatments, and periodic repainting to manage rust breakout. |
| Expected Usable Lifespan | 30+ Years Design Life Backed by Orient Juko's standard 20-year structural and architectural coating warranty. | 7 to 12 Years before board rot, post loosening, and structural failure require replacement. | 10 to 15 Years before bracket embrittlement, UV discoloration, and thermal distortion occur. | 15 to 20 Years, provided aggressive rust mitigation and repainting schedules are maintained. |
| 20-Year Total Cost of Ownership | Lowest Total Cost Single-stage CapEx investment with near-zero operating overhead over two decades. | Highest TCO (Up to 3.2x original cost in recurring staining and mid-life rebuilds). | High TCO (Up to 1.8x original cost from fastener failures and warped span replacements). | High TCO (Up to 2.4x original cost in continuous rust sanding, priming, and weld repairs). |
Comprehensive Lifecycle Cost Breakdown & 20-Year ROI Analysis
Evaluating perimeter fencing solely through the lens of initial bill-of-materials (BOM) pricing creates significant long-term budget vulnerabilities. Pressure-treated timber panels present an attractive entry price, but they initiate an ongoing cycle of operational expenses. Within the first two years, natural weathering demands power washing, structural re-fastening, and multi-coat chemical staining to prevent checking, splitting, and rot.
Over a 20-year service life, recurring maintenance labor and replacement components for wood or conventional steel quickly eclipse the initial installation budget. By year 10, lumber installations frequently suffer structural post rot, necessitating complete tear-downs. In contrast, prefabricated modular aluminum fence panels consolidate your boundary investment into a predictable, one-time capital expenditure with superior architectural longevity, much like our precision-engineered casement windows.
The 3 to 5 Year Economic Breakeven Curve
Financial modeling across commercial and residential perimeter installations proves that 6063-T5 aluminum systems achieve net cost parity with lumber and composite fencing within 36 to 60 months. Over a 20-year timeline, asset owners realize cumulative cost reductions exceeding 58% compared to wood and 42% compared to painted carbon steel.
- Zero recurring sealant and paint line items
- No post-installation warping or mid-span sagging
- Eliminates mid-lifecycle tear-down and rebuilds
- 100% recyclable material with high residual value
Rapid Payback & Lower Labor Cost
Precision modular components reduce on-site installation labor by up to 60%. Eliminating initial chemical sealing and primer treatments quickly offsets early material price variances.
Compounding Maintenance Savings
While competitor timber fences require extensive board replacements and steel fences demand abrasive rust treatments, aluminum panels retain pristine structural integrity.
Architectural Appeal & Residual Value
Sustains crisp architectural sightlines, pristine color retention, and high property valuation across decades, backed by comprehensive Orient Juko Metal Art material warranties.
Environmental Weathering Mechanics & Structural Resilience
Architectural perimeter fences are subjected to continuous environmental and physical stresses. Analyzing substrate performance at a microscopic level highlights why precision-extruded 6063-T5 aluminum alloy consistently outperforms composites and ferrous metals in demanding installations.
Salt Fog & Coastal Humidity
Ferrous metals oxidize rapidly when exposed to marine chlorides. Our 6063-T5 aluminum builds an impermeable passivating oxide layer, withstanding over 3,000 hours of continuous ASTM B117 salt spray testing without blistering, pitting, or coating loss.
Solar UV & Thermal Cycling
PVC and composite systems experience plasticizer migration and photochemical degradation under intense solar radiation, causing discoloration and brittleness. Our architectural powder coatings preserve specular gloss and Delta-E color fidelity under severe UV exposure.
Dynamic Wind Load Resistance
Unlike wooden fences that loosen and fail around fasteners under cyclic wind pressure, our concealed interlocking channel rails distribute lateral shear forces uniformly, delivering certified wind-load resistance up to 140 mph hurricane gusts.

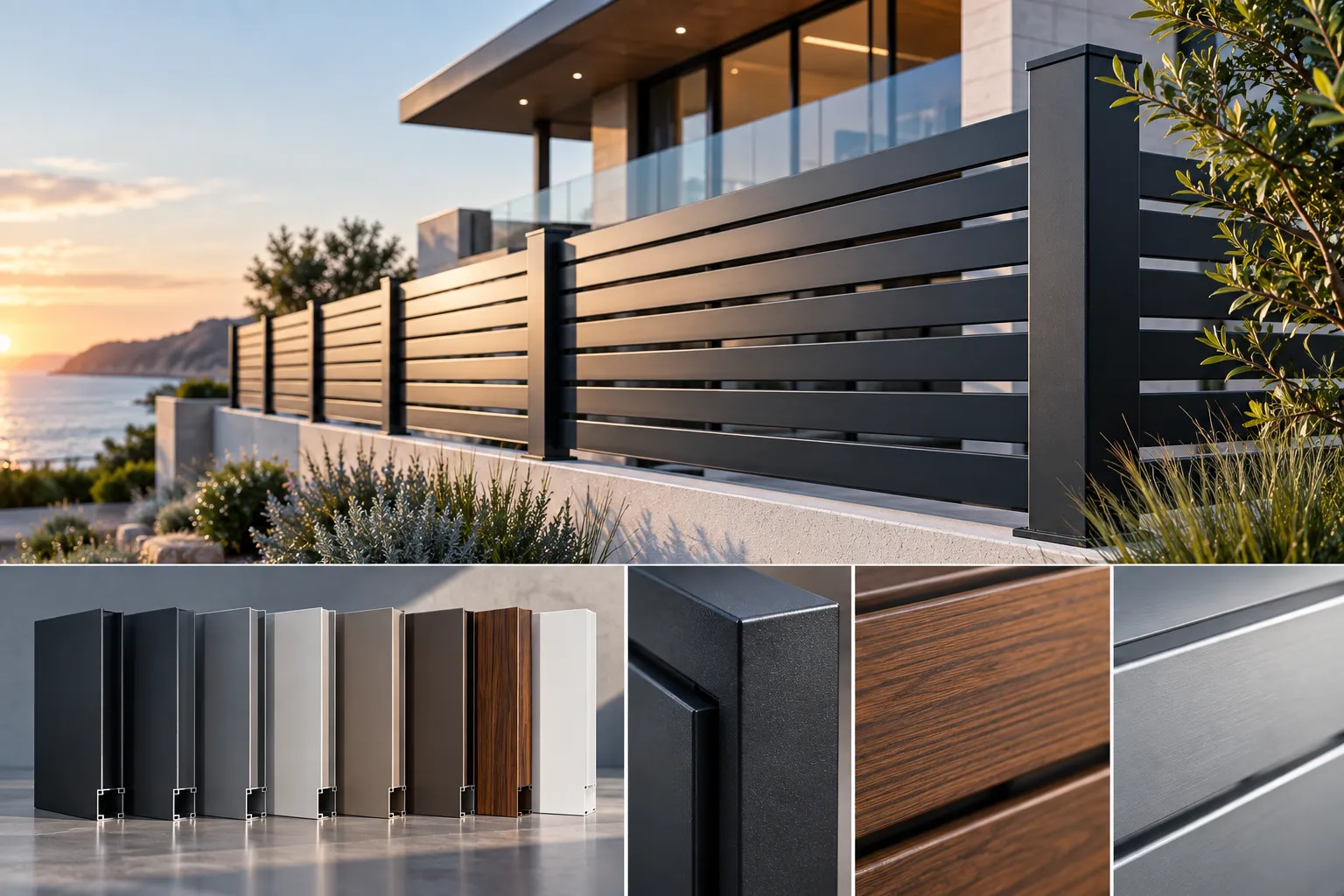

Architectural Surface Treatments & Color Finishes
Orient Juko Metal Art applies automated finishing technologies engineered for ultra-high UV resistance, salt-air barrier performance, and architectural facade harmony across our entire product range.
AAMA 2604 & 2605 Powder Coating
Electrostatic thermoset powder coatings formulated for commercial exterior facades, delivering exceptional gloss retention, anti-chalking defense, and 15 to 30-year color warranties under intense sun exposure.
3D Vacuum Woodgrain Sublimation
Hyper-realistic architectural woodgrain profiles achieved through vacuum thermal transfer, replicating the organic warmth of natural timber with zero warping, splintering, or bi-annual resealing.
Marine-Grade Class I Anodized Protection
High-density electrolytic oxide conversion engineered specifically for beachfront properties, marine environments, and high-salinity zones subject to severe ASTM B117 salt fog exposure.
Standard Architectural Palette & Custom RAL
Engineering Compliance, Load Testing & Global Certifications
Every modular aluminum fence panel engineered by Orient Juko Metal Art undergoes rigorous laboratory testing to satisfy international building codes, hurricane wind load mandates, and long-term coastal corrosion standards.
ASTM B117 & AAMA 2604
Surpasses 3,000+ continuous hours of neutral salt spray testing with zero blistering, film lifting, or substrate corrosion in high-salinity coastal zones.
ASTM E330 Wind Load
Structurally validated under uniform static air pressure to withstand lateral wind gusts up to 140 mph, matching the rigorous standards of hurricane-rated aluminum windows and exterior building envelopes.
ISO 9001 & CE Compliance
Full 6063-T5 virgin alloy billet traceability, precision CNC extrusion tolerances, and European EN 1090 architectural structural standards.
Class A Non-Combustible
Zero flame spread index and non-toxic emission ratings, fully compliant with Wildland-Urban Interface (WUI) and commercial fire protection codes.
Access Engineering Submittals & Test Reports
Fast-track municipal approvals and project sign-offs with our complete technical package, including stamped structural calculations, mill certificates, and third-party laboratory testing dossiers.
Request Laboratory Test Reports →Frequently Asked Questions on Modular Aluminum Fence Panels
Find authoritative answers regarding slope racking mechanisms, field cutting protocols, coastal wind load spacing, freight packaging, and custom extrusion lead times. Orient Juko Metal Art engineers high-tolerance 6063-T5 aluminum fence systems—engineered alongside our premium aluminum windows—designed for effortless field installation, code compliance, and zero-maintenance operational life.
Ready to Build Your Project? Get Complete CAD Drawings & Direct Quotes
Whether specifying for multi-family developments, commercial perimeters, or custom architectural projects , our engineering team delivers fully detailed shop drawings, structural connection details, comprehensive BOM takeoffs, and competitive factory-direct pricing within 24 hours.
Orient Juko Metal Art builds lasting industry trust by guaranteeing strict commercial confidentiality. Standard NDA execution and comprehensive project compliance documentation are available for all architectural and contractor partnerships.
Request Technical Takeoff & Pricing
Send us your project requirements and our engineering team will review the scope for pricing and technical support.
